PCWM3080AF

Frigidaire Professional 30'' Electric Wall Oven and Microwave Combination with Total Convection

  • bvseo_sdk, net_sdk, 3.2.0.0
  • CLOUD, getAggregateRating, 195ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
msrp $6,299.00
Complete Owner's Guide Icon

Complete Owner's Guide

Get support

Installation Instructions Icon

Installation Instructions

Get started

Register your product icon

Register your product

Learn more

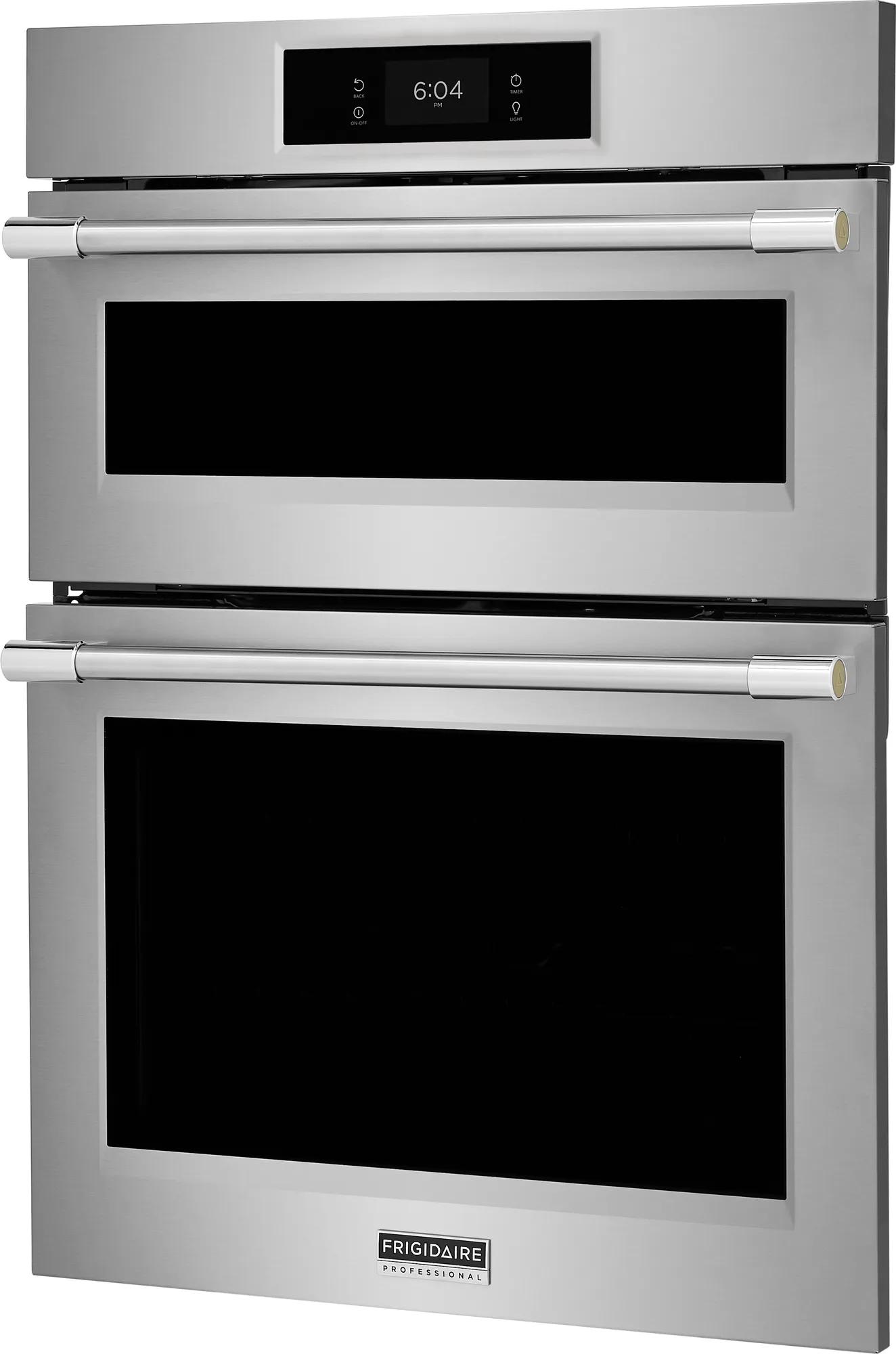

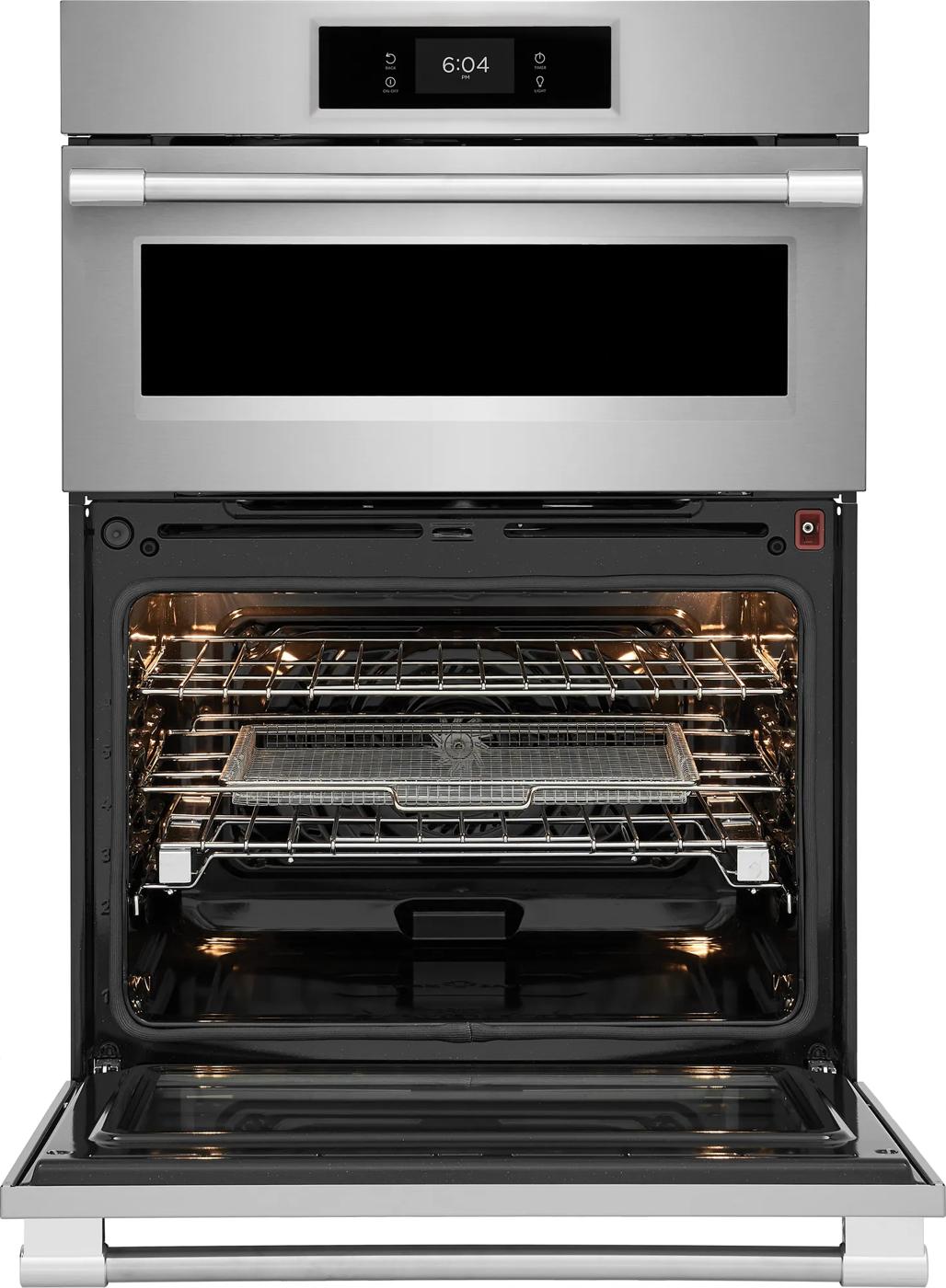

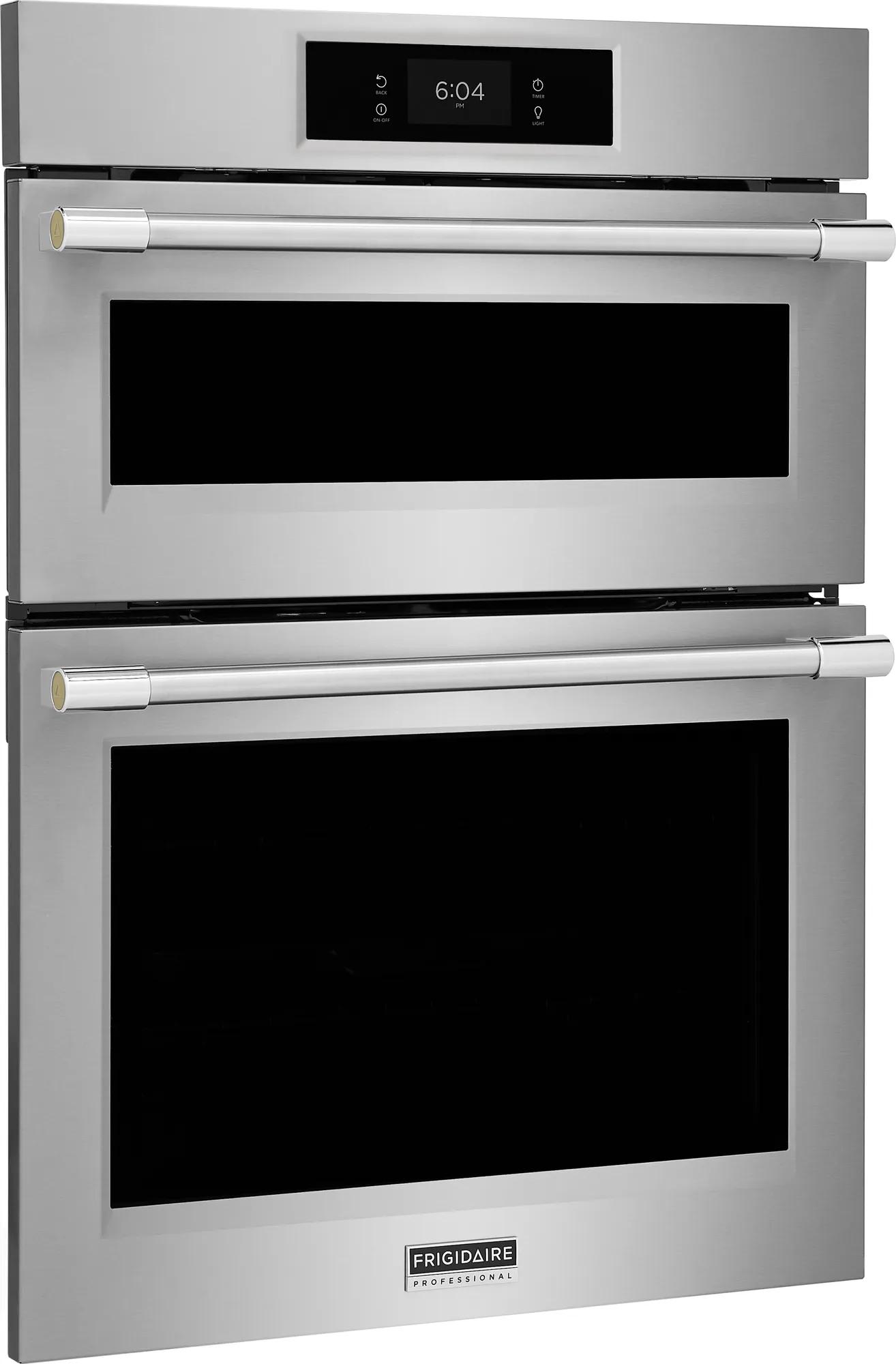

30" Electric Wall Oven and Microwave Combination with Total Convection Stainless Steel-PCWM3080AF

Total Convection System

Gives you maximum versatility in the kitchen, powering cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Convection Roast, Steam Roast and more!

No Preheat

Eliminates time wasted waiting on your oven to heat up - simply place your food in the cold oven and get to meal time, in no time. 1

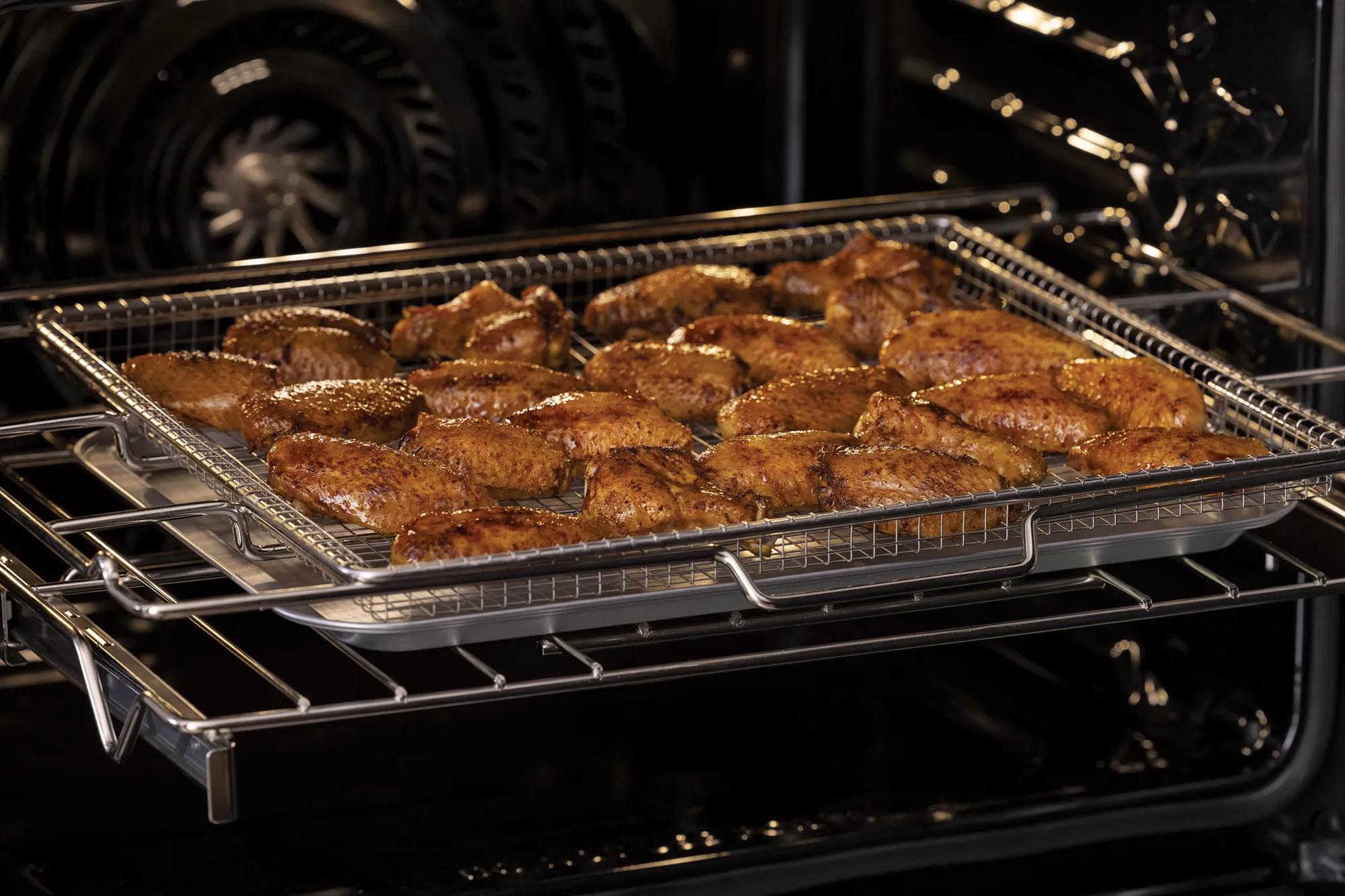

Air Fry

Make healthier and delicious meals for your entire family - right in your oven.

Features

Total Convection System

Gives you maximum versatility in the kitchen, powering cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Convection Roast, Steam Roast and more!

No Preheat

Eliminates time wasted waiting on your oven to heat up - simply place your food in the cold oven and get to meal time, in no time. 1

Air Fry

Make healthier and delicious meals for your entire family - right in your oven.

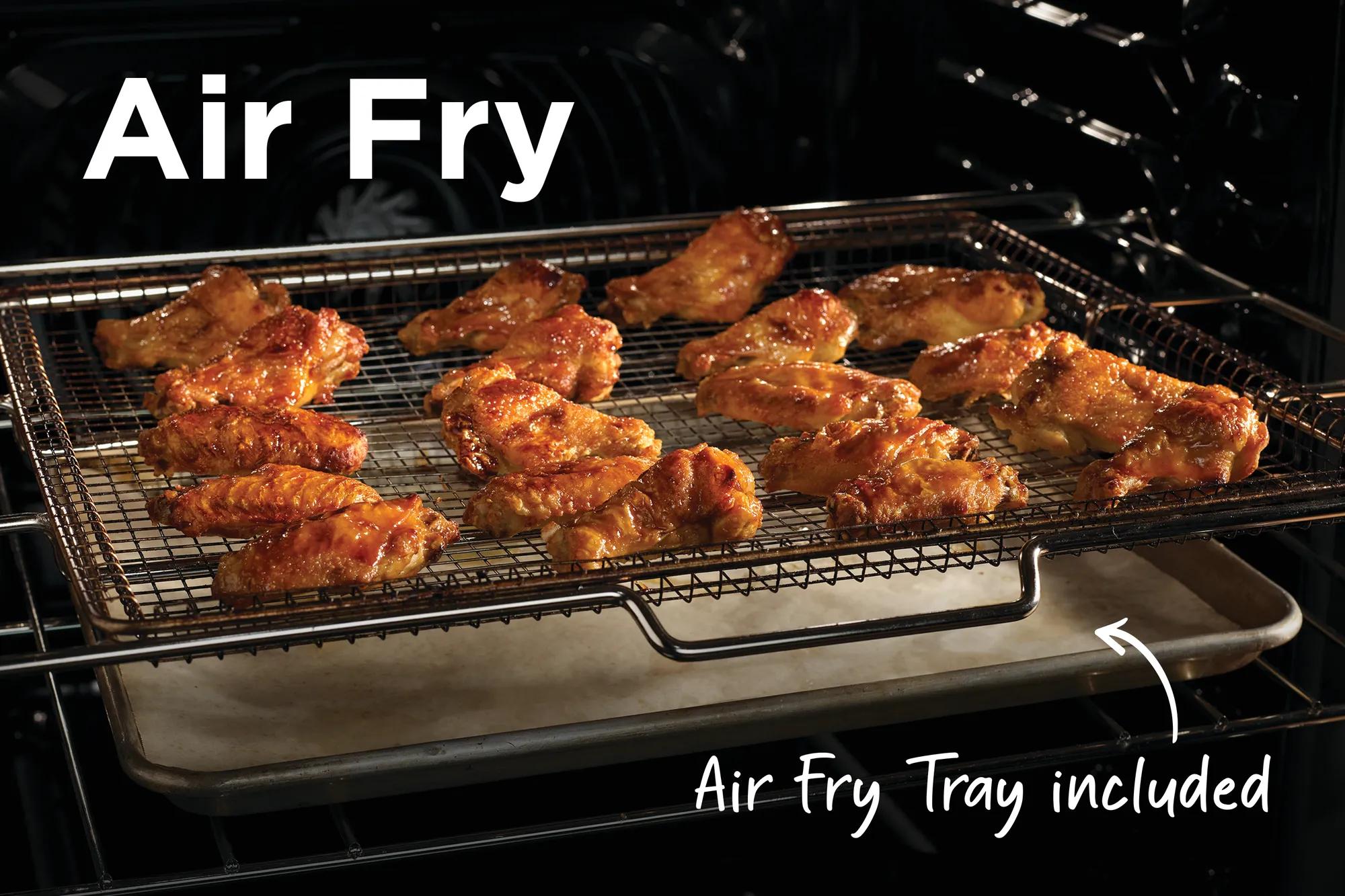

ReadyCook™ Air Fry Tray is included

For perfectly crispy and delicious Air Fry results. 2

Slow Cook

With Slow Cook, your food cooks slowly and at a lower temperature (as low as 100° F), allowing you to lock in moisture and flavor without over or undercooking your food.

Steam Bake

With Steam Bake, steam evenly circulates throughout the oven cavity, resulting in breads and muffins that rise higher and are light and fluffy.

Temperature Probe

Monitors and alerts when the desired finished cooking temperature has been reached.

Frigidaire® Fit Promise

We promise that your new 30" Frigidaire® Professional Microwave Combination Oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs. 3

Convection Cooking

Get the great tasting results of the conventional convection oven, combined with the speed of microwave technology with our convection bake.

Self and Steam Clean Cycles

Enjoy more cleaning flexibility. Select Steam Clean for a quick, 30 minute clean or choose Self Clean, which is available in 2, 3 and 4 hour cycles.

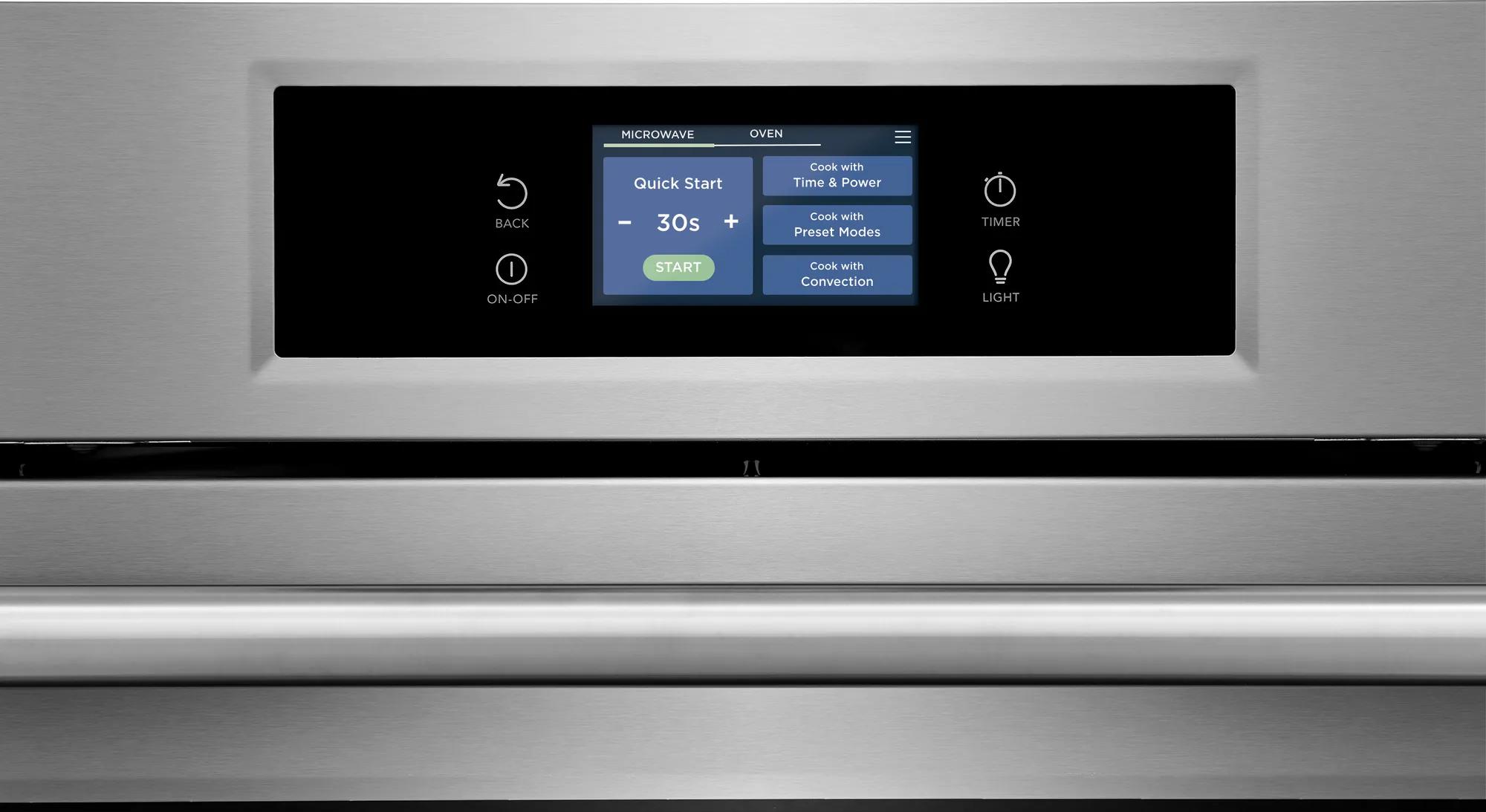

Premium Touch Screen Control Panel

Features a responsive 4.3 inch, full color, capacitive touch digital control panel.

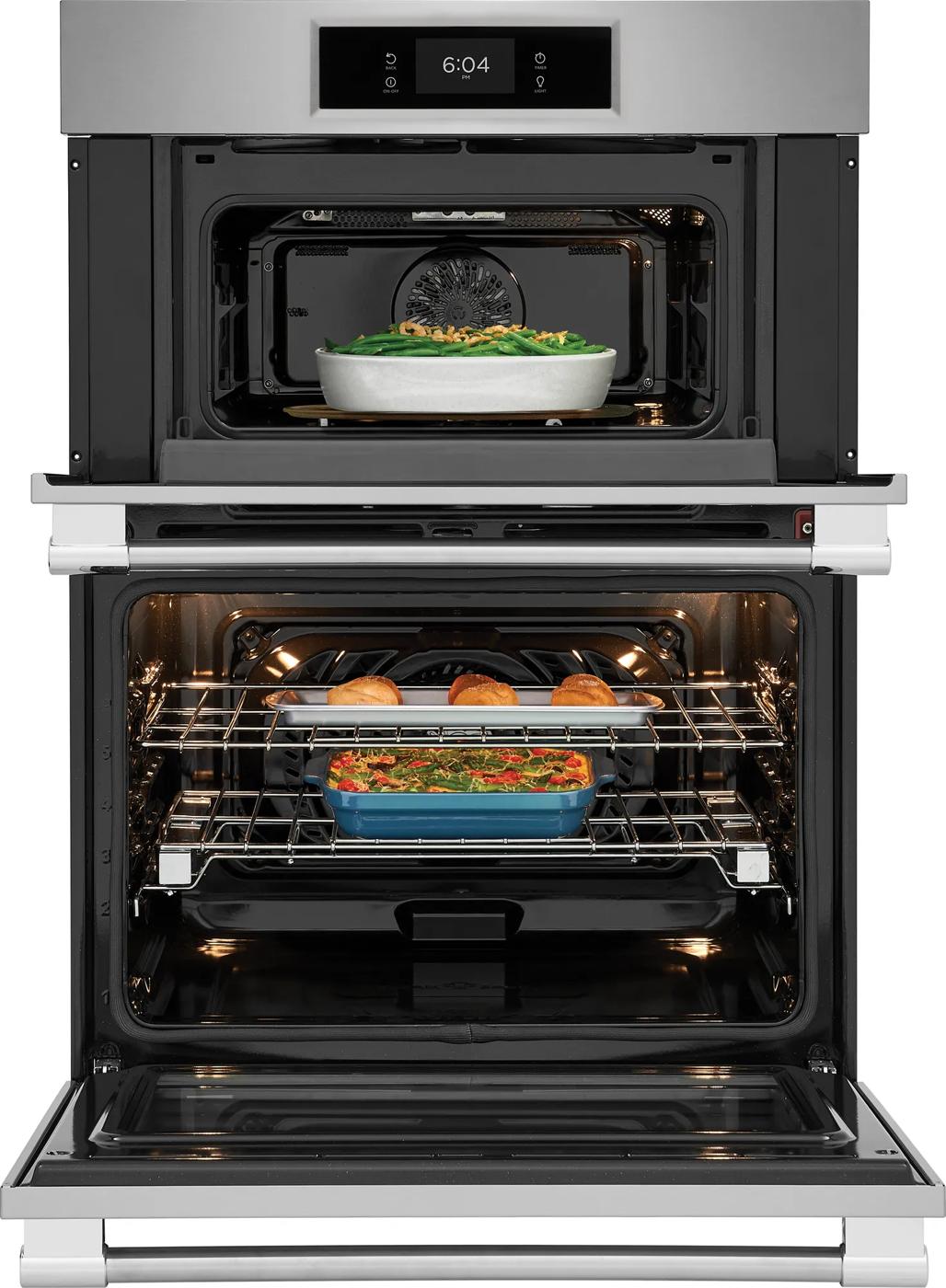

Extra Large Oven Capacity

Cook more at once with our extra large, 5.3 cu.ft. capacity oven.

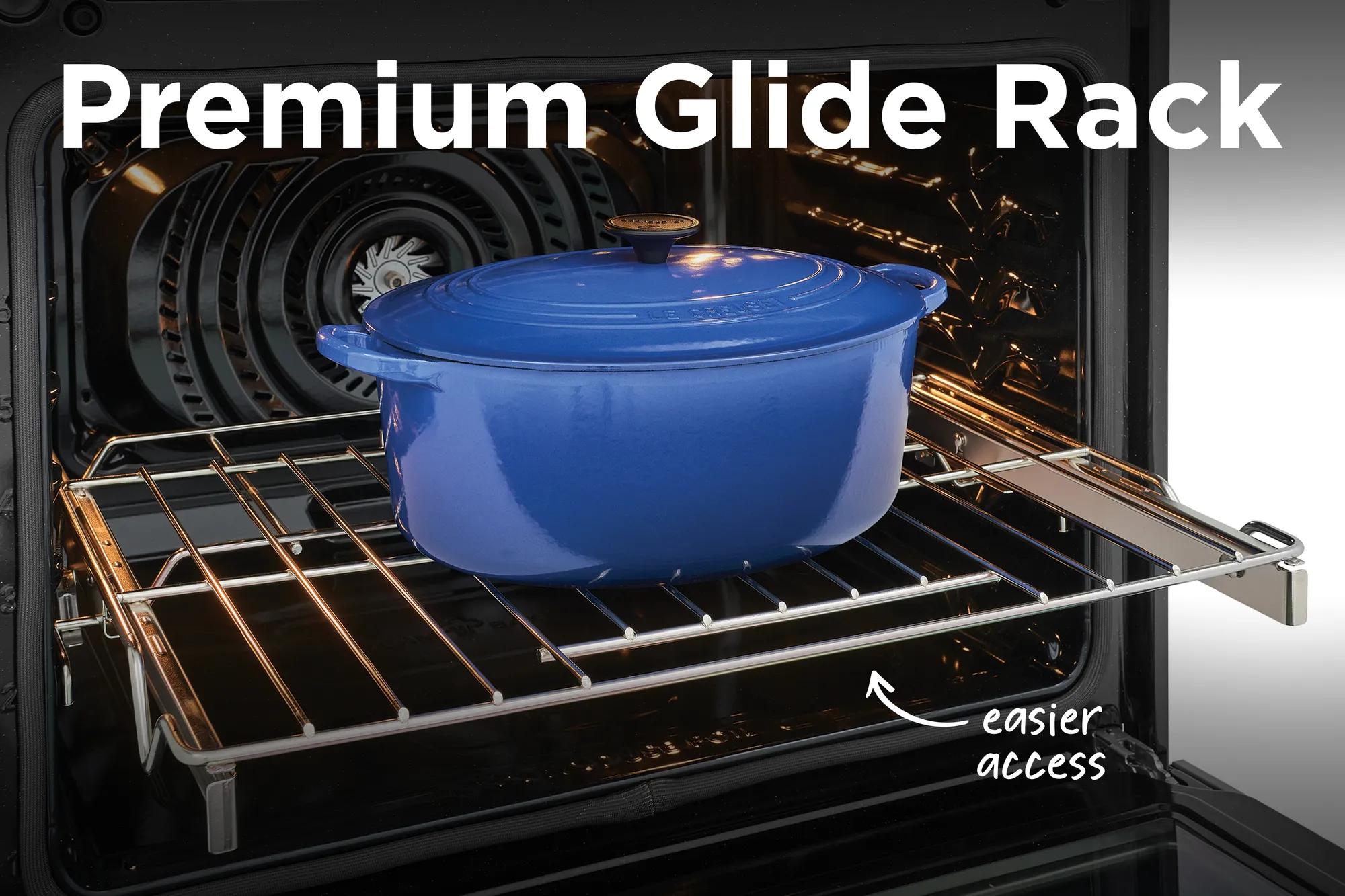

Premium Glide Rack

Our extending Glide Rack makes it easier to monitor and lift your food out of the oven.

Smudge-Proof® Stainless Steel

Resists fingerprints and cleans easily.

Cooking Controls
Air Fry: Yes
Air Sous Vide: Yes
Bake: Yes
Bake Time: Yes
Broil: Yes
Cancel: Yes
Child Lock: Yes
Clear Off: Yes
Clock: Yes
Convection Bake: Yes
Convection Roast: Yes
Cook Time: Yes
Dehydrate: Yes
Delay Clean: Yes
Delay Start: Yes
Fast Preheat: Yes
Keep Warm: Yes
Kitchen Timer: Yes
Light: Yes
My Favorite: Yes
Off: Yes
Oven Light: Yes
Perfect Turkey: Yes
Preheat: Yes
Probe: Yes
Self Clean: Yes
Set Clock: Yes
Slow Cook: Yes
Start: Yes
Start Time: Yes
Steam Bake: Yes
Steam Clean: Yes
Steam Roast: Yes
Stop: Yes
Temperature Display: Yes
Timed Bake: Yes
Timer On / Off: Yes
User Preferences: Yes
Cooking Controls Function
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature: Yes
Delayed Bake: Yes
Program Fahrenheit or Celsius: Yes
Silent Control Panel: Yes
Timed Cooking: Yes
Oven
Bake Element: 2600 Watts
Bake Element Pass: 4
Bake Element Type: Hidden
Broil Element: 4000 Watts
Broil Element Pass: 6
Broil System: Yes
Cleaning System: Yes
Convection: Yes
Convection Element: 3800 Watts
Convection Type: Total
Number of Convection Fans: 1
Number of Rack Positions: 6
Oven Interior Color: Midnight Black
Oven Light Quantity: 2
Oven Light Type: Halogen
Oven Light Watts: 40 Watts
Rack Position Type: Embossed
Rack Type 1: Handle
Rack Type 1 Quantity: 2
Rack Type 2: Glide
Rack Type 2 Quantity: 1

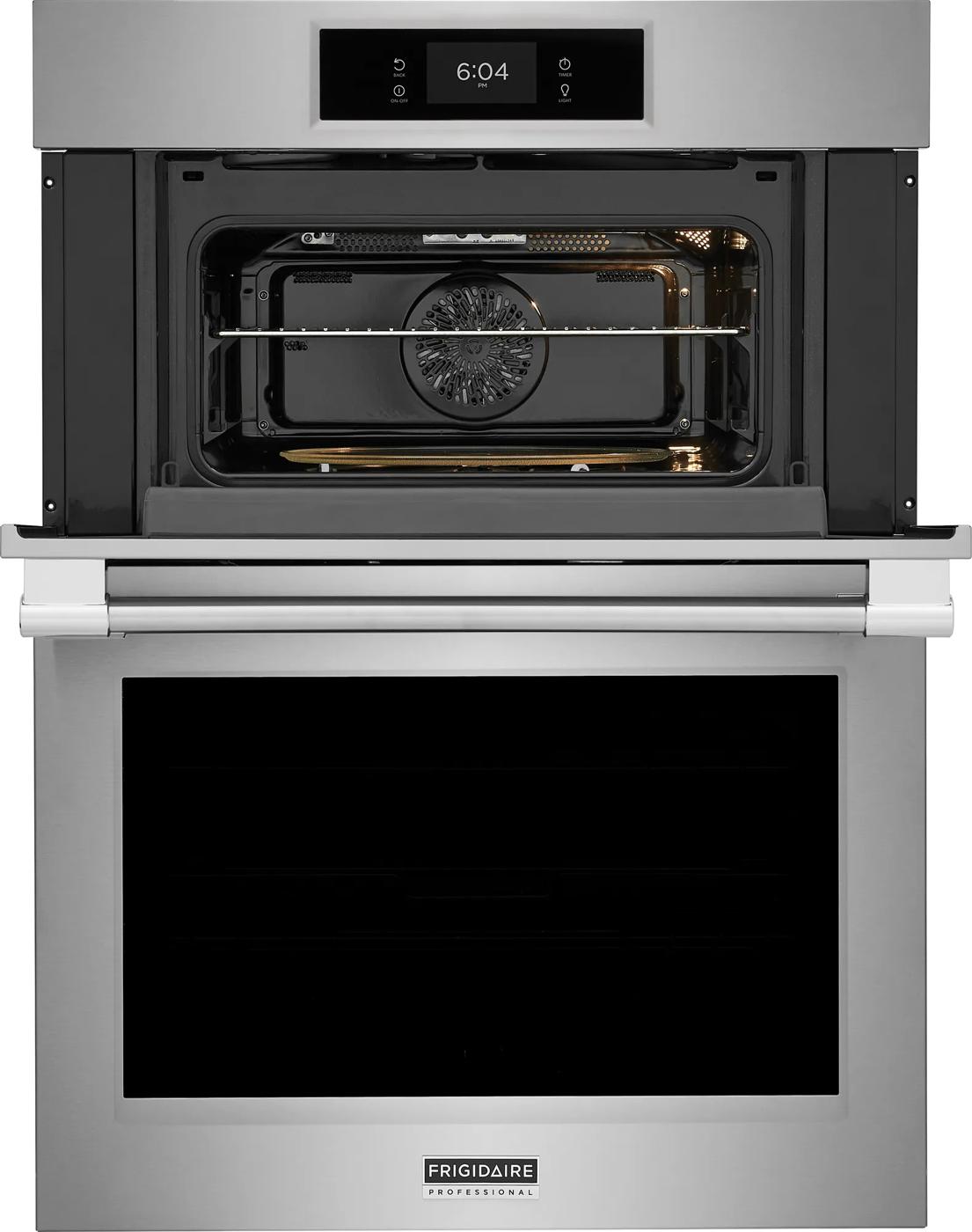

Microwave Cooking
Microwave Cooking Power: 1000 Watts
Bacon: Yes
Beverage: Yes
Defrost: Yes
Melt / Soften: Yes
Popcorn: Yes
Reheat: Yes
Rice: Yes
Top Grill Mode: Yes
Veggies: Yes
Convection Cooking
Convection Cooking - Bake: Yes
Convection Element: 1650 Watts
Controls
Control Lock: Yes
Sabbath Mode: Yes
Microwave Control Features
+ 30 Seconds: Yes - One Touch
Display
Display Interface Color: White
Display Light Color: White
Display Type: Capacitive Touch
Exterior
Door Swing: Drop-Down Door
Exterior Finish: Smudge-Proof® Stainless Steel
Internal Specifications
Rack: Yes
Turntable Diameter: 14"
Turntable Material: Glass

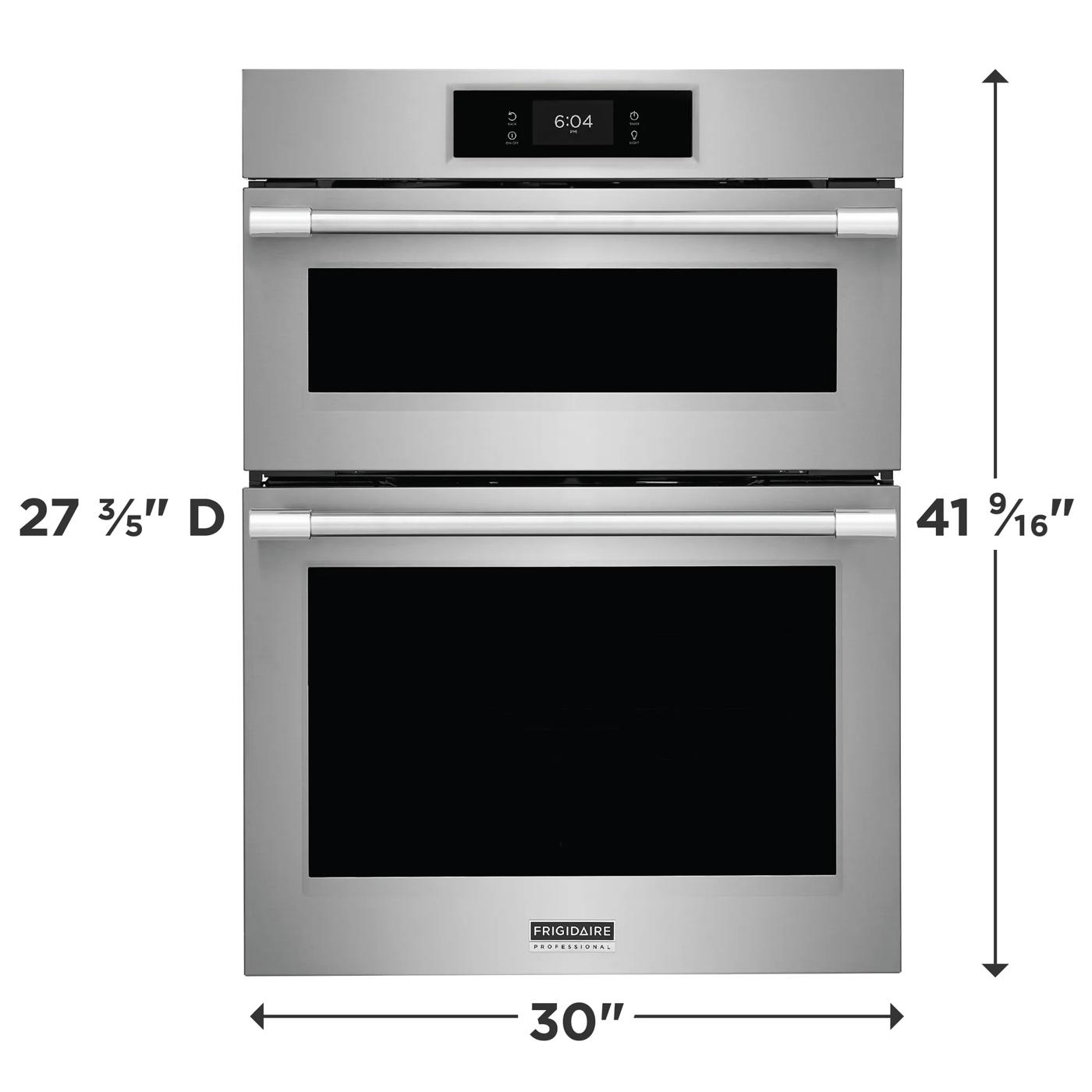

Dimensions and Volume
Height: 41 9/16"
Width: 29 7/8"
Depth: 25 3/16"
Depth With Door 90° Open: 48 3/16"
Depth With Handle: 27 3/5"
Cutout Depth: 23 5/8"
Oven Interior Height: 18 1/8"
Oven Interior Width: 25 3/16"
Oven Interior Depth: 19 7/8"
Microwave Interior Height: 9 5/16"
Microwave Interior Width: 18 7/8"
Microwave Interior Depth: 16 1/8"
Minimum Cutout Height: 40 5/8"
Minimum Cutout Width: 28 1/2"
Maximum Cutout Height: 41 1/2"
Maximum Cutout Width: 29"
Microwave Capacity: 1.7 Cu. Ft.
Oven Capacity: 5.3 Cu. Ft.
Electrical Specifications
Amps @ 240 Volts: 40 Amps
Connected Load @ 240V: 7.6 kW
Minimum Circuit Required: 40 Amps
Voltage Rating: 240 V
General Specifications
Frigidaire Fit Promise: Yes
Product Weight: 285 lbs
Prop 65 Label: Yes
Warranty - Labor: 1 Year
Warranty - Parts: 1 Year
AB-1200: Information available at frigidaire.com/en/ab1200
WARNING

Cancer and Reproductive Harm -- www.P65Warnings.ca.gov

Installation
Power Supply Connection Location: Top Left
Safety Certifications and Approvals
CSA Listed: Yes
RoHS: Yes
Star-K Certification: Yes
UL Listed: Yes
